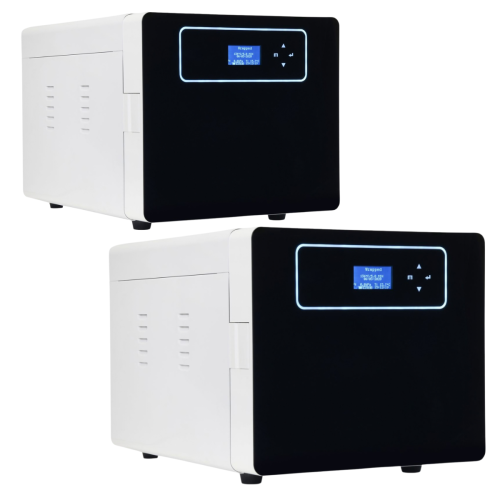

Excel New Generation Vacuum Autoclave

The Excel New Generation Vacuum Autoclave is a touch-screen Class B fractionated vacuum steriliser designed for solid, hollow, wrapped, and porous instruments

Key Features:

• Touch-Screen Display: Simple, user-friendly, wipe-clean digital control screen.
• Class B Performance: Fractionated vacuum air removal ensures deep steam penetration, operating at standard sterilisation temperatures up to 134°C with an automatic drying phase.
• Built-In Steam Generator: Provides rapid steam availability for accelerated cycle times.
• Automated Door System: Fully automated locking and opening mechanism without a manual handle.
• Data & Recording: Includes an external micro-printer and a built-in USB port for downloading and saving cycle logs.
• Water Reservoir Design: Easily accessible water tank for simplified filling and maintenance cleaning.
• Safety Systems: Features a double-locking pressure device, safety valves, chamber/generator thermostats, cycle locks, and an integrated RCD electrical circuit protector.
• Standards Compliance: Fully complies with MDD 93/42/EEC, BS EN13060 small sterilisers, HTM 2010-01-05, and the Pressure Equipment Directive.
• 12 months warranty

Specification:

• Chamber Capacity: 8 Litres or 12 Litres
• External Dimensions: (L × W × H) 8L: 500 mm × 300 mm × 330 mm, 12L: 570mm x 400mm x 400mm
• Net Weight: 8L- 35kg, 12L - 40kg
• Sterilisation Profiles: Operates Class B fractionated triple-phase vacuum pulses.
• Maximum Working Temperature: 134°C.
• Electrical Supply: Single Phase AC 220–240V / 50Hz.
• Integrated Water Storage: Features an internal distilled water reservoir.
• Acoustic Noise Output: Mean sound levels measure below 70 dB (LWA).
• Operational Environment: Ambient temperature tolerance range from 5°C up to 40°C.

FAQs:

What daily tests need to be performed?
You should conduct a manual vacuum penetration test before your first clinic cycle every day. Use a Helix Test Strip to confirm deep vacuum steam penetration or a Bowie-Dick Test Pack on a wrapped cycle.
Do these machines meet UK/EU infection control standards?
Yes. They are medical-grade Class B fractionated sterilisers fully compliant with HTM 01-05 (Dental), HTM 2010, BS EN13060, and MDD 93/42/EEC.
What kind of water should I use?
You must use distilled or demineralised water. Tap water will cause immediate limescale buildup in the internal steam generator, clogging the solenoid valves and invalidating your warranty.
Does the autoclave need a permanent mains water hookup?
No. The New Generation benchtop units feature manual-fill internal reservoirs (holding between 2.5L and 3.5L depending on capacity) and do not require plumbing.

Note: The machine must be levelled correctly on a flat countertop. It requires at least 10 cm of clearance on all sides and 20 cm of clearance at the top to ensure proper thermal ventilation.
